DaHo Products

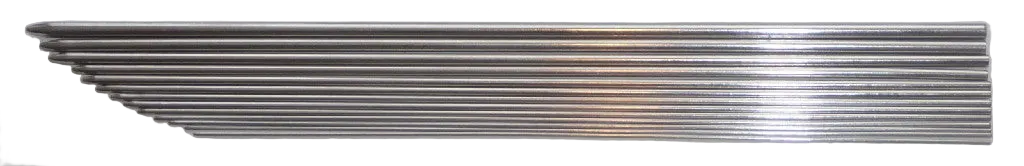

DaHo Hollow Spectra Threading Needles

$21.00 USD

Sale Sold out

Shipping calculated at checkout.

How They Work

DaHo Hollow Spectra Threading Needles are designed with a hollow shaft (except at the point), allowing monofilament or fluorocarbon line to be inserted directly into the needle.

Once inserted, the needle—along with the internal line—is threaded into the hollow core of the Spectra braid. For optimal strength, the needle and line are typically inserted 3 to 5 feet inside the braid.

Due to the smooth surface of mono and fluorocarbon lines, the exposed end of the Spectra must be secured using one or more of the following methods:

Gluing
Serving
Crimping
Combination of methods

This finishing step ensures the connection remains secure until the braid compresses and locks the lines together under tension.

Selecting the Correct Needle Size

The primary sizing factor for threading needles is the Internal Diameter (ID), which determines the size of mono or fluorocarbon line that can be inserted.

Select a needle based on the actual diameter of your line, not just the labeled strength
Due to manufacturing tolerances, needle IDs may vary by up to ±0.002 inches
For best performance, choose a needle that is at least 0.002 inches larger than your line diameter

This slight clearance allows for easier insertion and smoother operation.

Specification Table

Model	Description	Length	OD Size	ID Size*	Spectra Range
N02017	10–20 lb Small Threading Needle	5.3″	.025″ / 0.635 mm	.017″ / 0.430 mm	up to 60 lb
N03020	20–30 lb Small Threading Needle	5.4″	.028″ / 0.710 mm	.020″ / 0.510 mm	up to 80 lb
N04023	30–40 lb Small Threading Needle	5.5″	.032″ / 0.810 mm	.023″ / 0.580 mm	up to 80 lb
N05026	40–50 lb Threading Needle	5.6″	.036″ / 0.900 mm	.026″ / 0.670 mm	60–130 lb
N06032	50–60 lb Threading Needle	5.7″	.042″ / 1.06 mm	.032″ / 0.810 mm	80–130 lb
N08038	60–80 lb Threading Needle	5.8″	.050″ / 1.27 mm	.038″ / 0.960 mm	100–300 lb
N10042	80–100 lb Threading Needle	5.9″	.050″ / 1.27 mm	.042″ / 1.06 mm	100–300 lb
N13047	100–130 lb Threading Needle	6.0″	.058″ / 1.48 mm	.047″ / 1.19 mm	130–300 lb
N15053	130–150 lb Threading Needle	6.1″	.065″ / 1.65 mm	.053″ / 1.35 mm	200 lb and up
N20060	150–200 lb Threading Needle	6.2″	.072″ / 1.83 mm	.060″ / 1.50 mm	200 lb and up
N30067	200–300 lb Big Threading Needle	6.3″	.083″ / 2.11 mm	.067″ / 1.70 mm	300 lb and up
N40077	300–400 lb Big Threading Needle	6.4″	.095″ / 2.41 mm	.077″ / 1.96 mm	400 lb and up
N50091	400–500 lb Big Threading Needle	6.5″	.109″ / 2.77 mm	.091″ / 2.31 mm	500 lb and up
